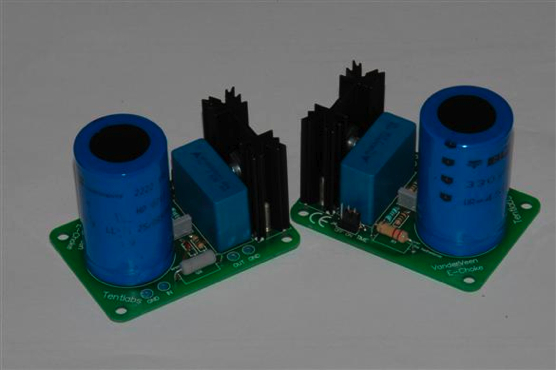

The module comes fully stuffed and tested. It is intended for either upgrade of existing tube amplifiers, or building new. OEM customers, please apply for more info.

General Description

Designer Menno Vanderveen set the concept for this DIY module. The E-choke replaces traditional chokes that generally work quite well, but suffer from serious disadvantages:
• high weight
• relatively big size
• magnetic field radiation that induces hum in the circuit

The E-choke effectively solves all these issues, and offers up to 70dB supply ripple reduction at currents up to 500 mAdc. In addition, intermodulation distortion reduces dramatically, see the measurements and background articles below.

Pasted Graphic

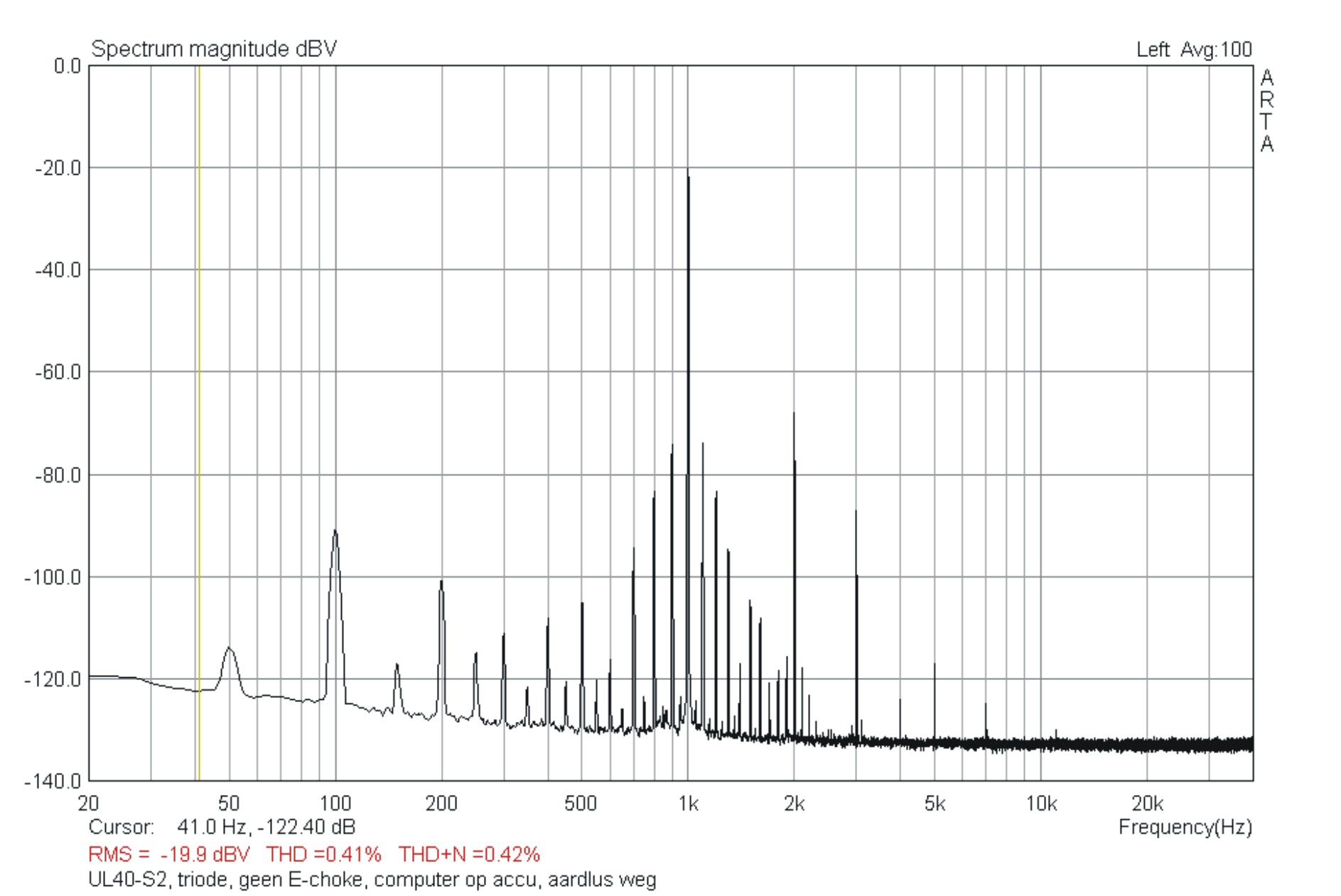

UL40-S2, triode, distortion no E-choke

Pasted Graphic 1

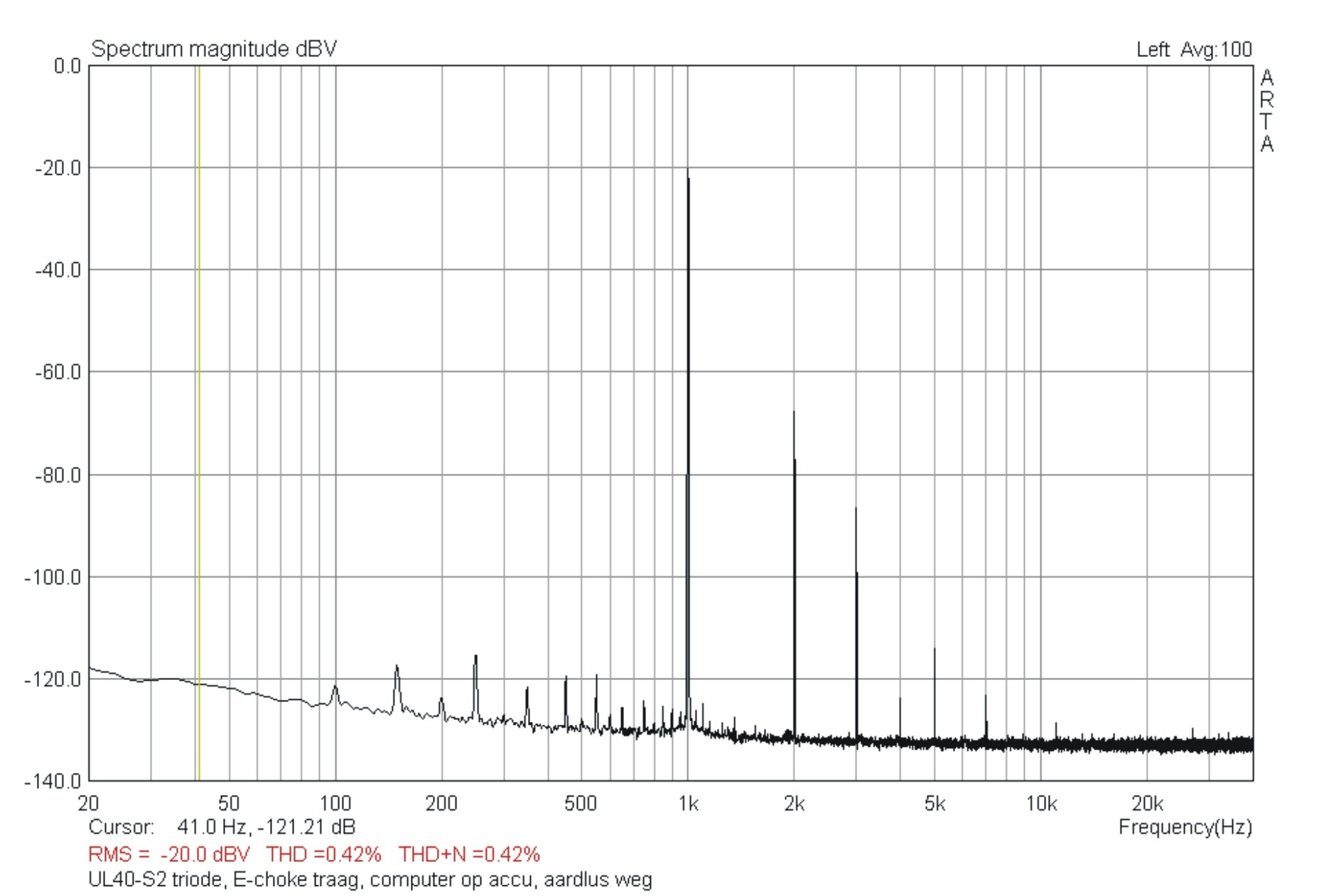

UL40-S2, triode, distortion with E-choke

Look how effectively the choke removes the hum, but also dramatically reduces the intermodulation products of the signal (1 kHz) with power supply ripple (100 Hz)

Technical description

See the background articles by Menno Vanderveen:
E-choke design (English)
E-choke design (Dutch)


Imax out 500mAdc
Vmax in 450Vdc (can be adapted to 600Vdc max when changing input capacitor to suitable working voltage)
Vripple 15Vtt (maximum input ripple)
C-in 330uF/450V (included on module):
C-in may be reduced linearly when current consumption is lower than 500mA
C-in must be reduced when valve rectification is applied
C-out 330uF/450V (externally required, recommended value)
Voltage drop <17Vdc (in-out at 500mAdc load)
Dissipation <5W
• Heatsink integrated, connected to gnd
Rejection :
>40dB, time modus off (mostly used with class AB amplifiers)
>60dB, time modus on (recommended for class A amplifiers)
short circuit NOT protected, always include fuse at module output


PCB size: 72*50*50 mm (W*L*H) (includes electrolytic, excludes standoffs)
Hole pitch: 63*41 mm (symmetrical). All hole diameters 3.2 mm

Keep me informed

Send an e-mail to Tentlabs to keep me updated

Prices and availability

The price is €57,98 ex VAT ex shipping (€69,- including VAT ex shipping).


No manual yet, but I am working on it. Connections are fairly straightforward, see example below:

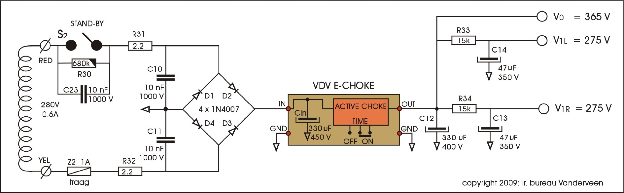

E-choke application
You may want to change the 1N4007 to the better sounding BYV96E


This module is warranted for 5 years, assumed all mounting instructions are followed
